Dry sensors for SmartBCI wireless EEG

Dry sensors for SmartBCI wireless EEG

Dry cap top view

SmartBCI wireless EEG systems now support both standard wet electrodes and caps with dry sensors.

We have upgraded the EEG amplifier and design special EEG cap with active electrodes with soft dry sensors. Now all SmartBCI system are compatible with both types of electrodes without any modification. You can now order extra 21 channel dry cap for your SmartBCI system in addition to your clinical kit with wet electrodes. Dry EEG cap includes 19 EEG channels + Common REF + GND.

Of courser the signal-to-noise ration is lower for dry sensors comparing to standard wet electrodes that require EEG gel or conductive past. But there is no perfect choice of electrodes that fir all cases and population groups. Instead, the needs of the research and experiment should be analyzed in detail, in order to carefully define the set of electrodes that will be used.

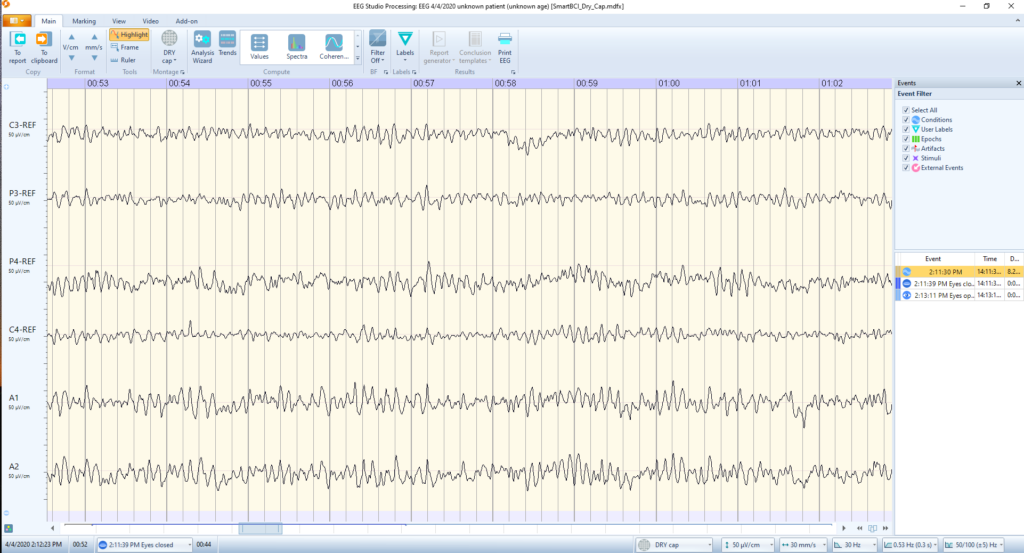

EEG record with active dry electrodes.
SmartBCI dry sensor assembly

The active electrodes have a pre-amplification module right after the sensor conductive material. This allows the signal to be amplified before additional noise is acquired between the electrode and amplifier itself that would capture, process the raw EEG signal.

Dry electrodes could be better choice for following research and clinical application:

  • Neurofeedback and other neurorahabilitation
  • Brain Computer Interfaces (BCI) design
  • Peak Performance in sports
  • Group EEG and etc.

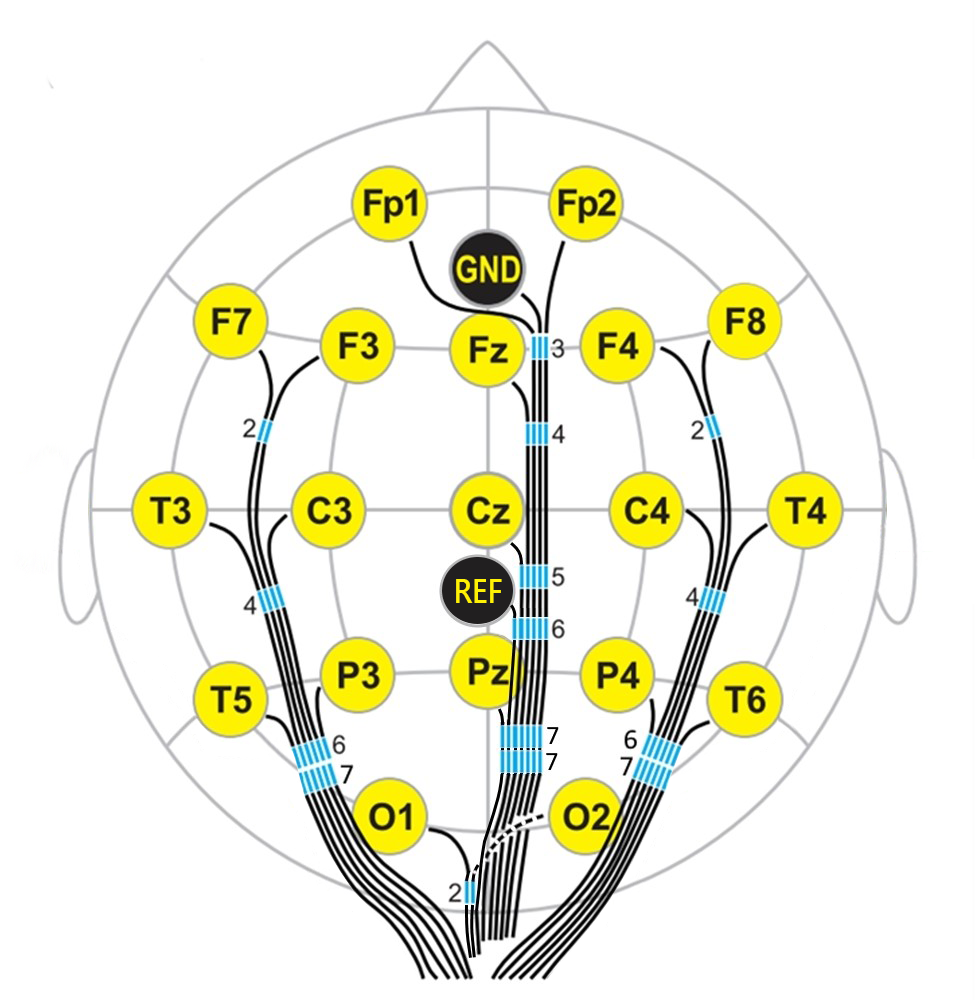

Dry cap layout

Be aware that impedance measurement like evaluation of electrodes quality installation is not available for dry sensors. Impedance values for them are much higher comparing to wet electrodes and can exceed 100-250 kOhm, We use special technique in EEGStudio to provide clear feedback to the user about quality of electrodes placement. It based on 50/60 Hz noise level.
